Key Specifications / Features

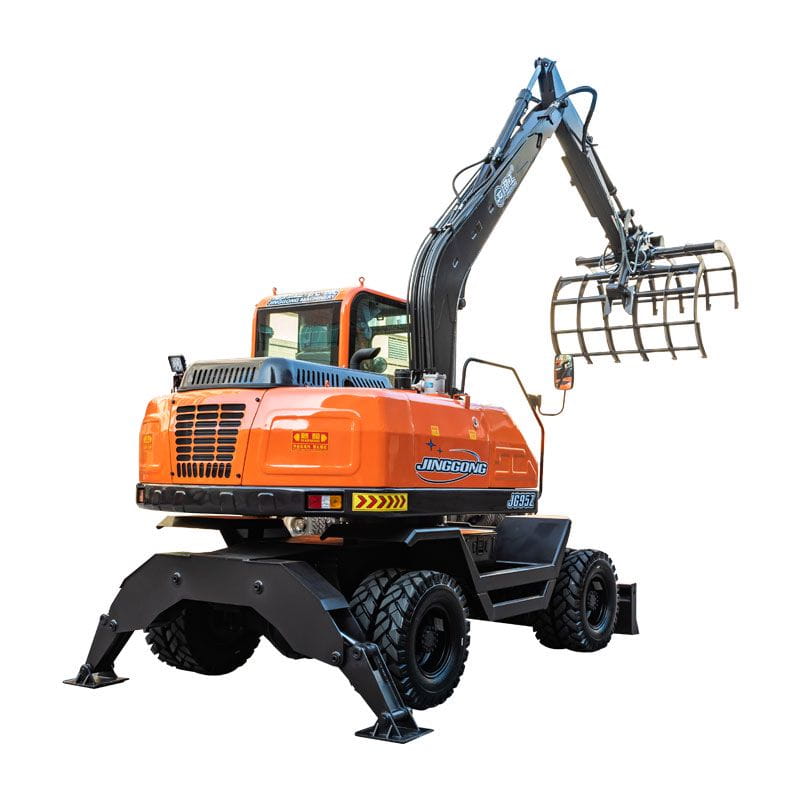

Discover our wheeled cotton bales grab loader, expertly manufactured to handle cotton bales. With an operating weight of 7.8 tons and a powerful 62.5 kW engine, this loader ensures efficient performance. It boasts a maximum opening grab width of 1250 mm and can handle a maximum radius grab of 800 kg, making it a versatile solution for cotton handling needs.
- Model no.: WE-230828-SCM-03
- Hits: 4
- Categories: Special Construction Machinery
- Tags: Special Construction Machines
Detail Information
| SPECIFICATIONS OF JG95Z CRANE GRAPPLE LOADER | ||||||||||
| RANGE OF OPERATION | Boom length | 4000mm | ||||||||
| Arm length | 2000mm | |||||||||
| Max radius of capture | 7000~7500mm | |||||||||
| Max. Opening Width of Grab | 1250mm | |||||||||
| Min. Opening Width of Grab | 80mm | |||||||||
| Max. Radius Grabing Weight | 800kg | |||||||||
| Grapple rotation angle | 360° | |||||||||
| Max dumping height | 4650~5500mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 6600*2350*2950mm | ||||||||
| Axle base | 2400mm | |||||||||
| Wheel base(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 300mm | |||||||||
| Drive axle | 10T | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7800kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 62.5kw | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 72ml/r | |||||||||
| Grapple swing speed | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 8.25-16 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
